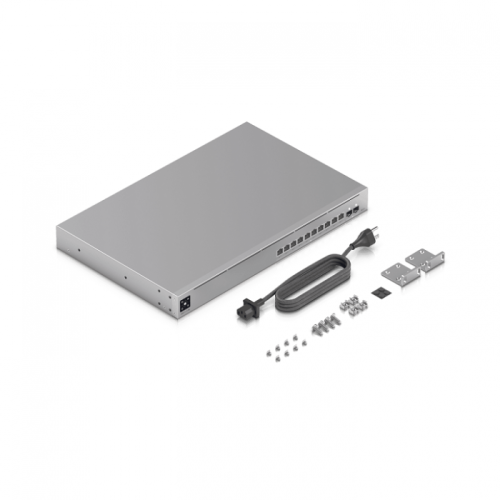

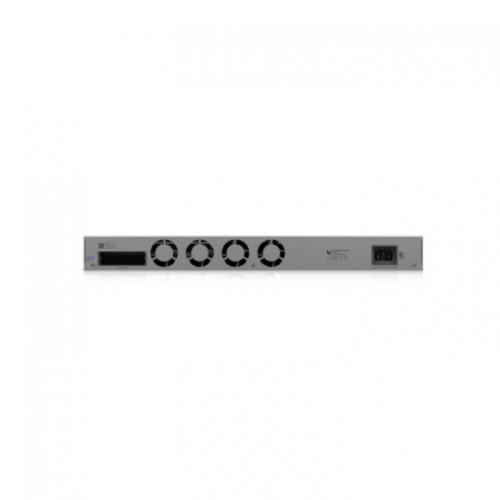

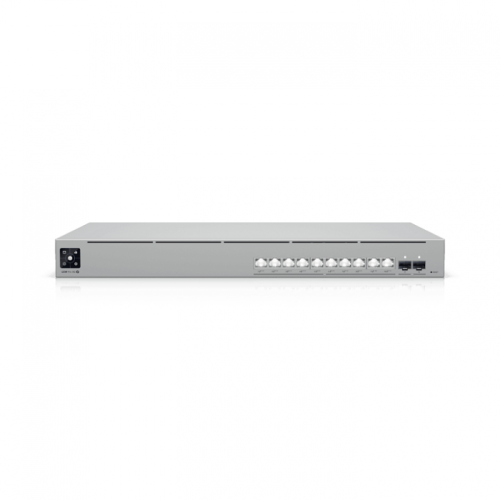

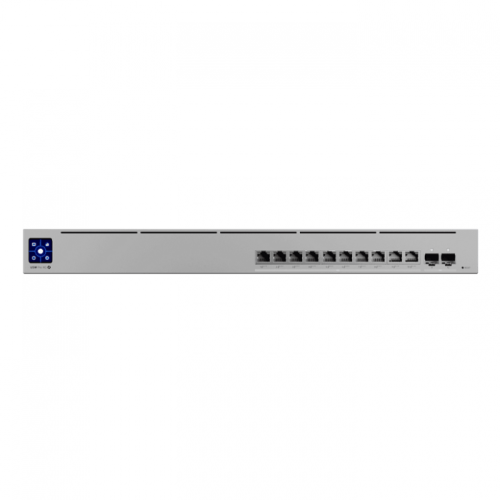

Ubiquiti USW-Pro-XG-10-PoE (400W) Pro XG 10 PoE Switch
Dimensions 442.4 x 285 x 44 mm
(17.4 x 11.2 x 1.7")
Port Layout
10 GbE RJ45 10 (All PoE+++)
(10G/5G/2.5G/1G/100M)
10G SFP+ 2
(10G/1G)
Max. PoE Output Up to PoE+++
Total PoE Availability 400W
Redundancy DC Power Backup
Layer 3 Yes
Form Factor Rack mount (1U)
Etherlighting Yes
Performance
Switching Capacity 240 Gbps
Total Non-Blocking Throughput 120 Gbps
Forwarding Rate 179 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
L3 Table Size
ARP Entries 12,000
IPv4 Routes 12,000
Packet Buffer Size 2 MB
Layer 3 Features
DHCP Server (Local Networks) Yes
DHCP Relay Yes
Inter-VLAN Routing (Local Networks) Yes
Static Routing (Local Networks) Yes
Layer 2 Features
LACP Port Aggregation Yes
STP & RSTP Yes
QoS (DSCP) Yes
Pro AV Profiles Yes
(Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration Yes
(Querier, Fast Leave, Router Port)
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes
Hardware
PoE Ports
PoE++ 10
Max. PoE Wattage per Port by PSE
PoE 15.4W
PoE+ 30W
PoE++ 60W
PoE+++ 90W
Max. Power Consumption 65W (Excluding PoE output)
520W (Including PoE output)
Power Method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method AC input
Power Supply AC/DC, external, 500W
Supported Voltage Range 100—240V AC
Management Ethernet
AR
Weight Without mounting brackets: 4.6 kg (10.14 lb)
With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400-1200 mm
(15.7-47.2"")
LCM Display 1.3" touchscreen
ESD/EMP Protection Air: + 30kV, contact: + 30kV
Ambient Operating Temperature -5 to 45 C (23 to 104 F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting
Ethernet Yes
SFP+ Yes
LEDs
RPS Yes
System Yes
Certifications CE, FCC, IC
NDAA Compliant Yes
