Ubiquiti WAN Switch - USW-WAN
Ubiquiti WAN Switch - USW-WAN
Product Code:
Availability:
Availability:
Ubiquiti USW-WAN
Out Of Stock
Out Of Stock
10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Ubiquiti USW-WAN WAN Switch

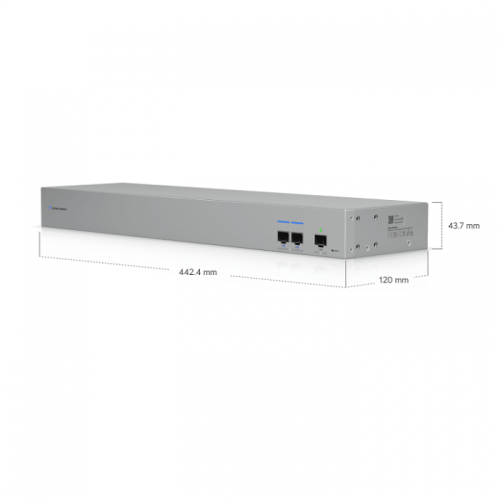

Dimensions 442.4 x 120 x 43.7 mm
(17.4 x 4.72 x 1.7")
Port Layout
1 GbE RJ45 1
(1G/100M/10M)
10G SFP+ 3
(10G/1G)
Redundancy (2) AC inputs
Form Factor Rack mount (1U)
Performance
Switching Capacity 20 Gbps
Total Non-Blocking Throughput 10 Gbps
Forwarding Rate 15 Mpps
Hardware
Max. Power Consumption 13W
Power Method (2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply (2) AC/DC, internal, 36W
Supported Voltage Range 100—240V AC
Management Ethernet
Weight Without mounting brackets: 2.2 kg (4.85 lb)
With mounting brackets: 2.3 kg (5.1 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
ESD/EMP Protection Air: + 16kV, contact: + 22kV
Ambient Operating Temperature -5 to 40 C (23 to 104 F)
Ambient Operating Humidity 10 to 90% noncondensing
LEDs
Ethernet Yes
SFP+ Yes
System Yes
Certifications CE, FCC, IC
NDAA Compliant Yes
Software
Application Requirements
UniFi Network Version 9.1.119 and later
