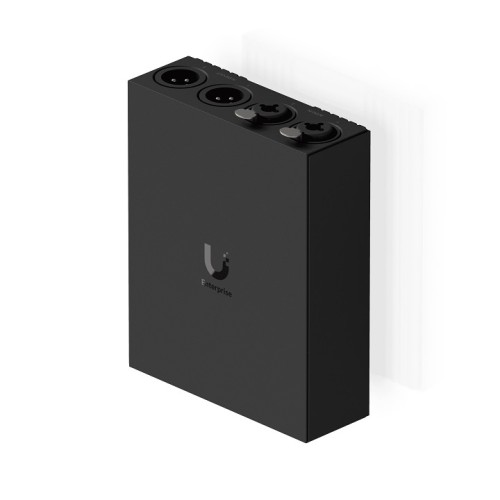

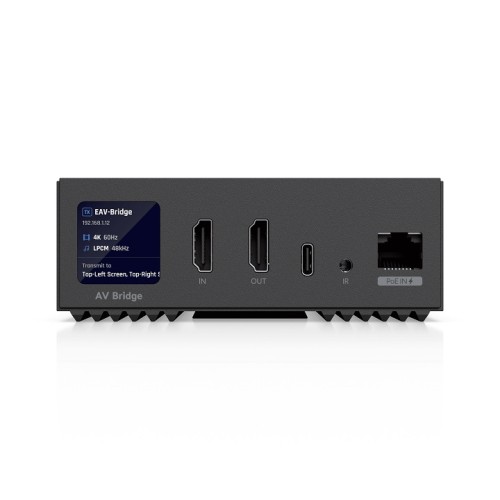

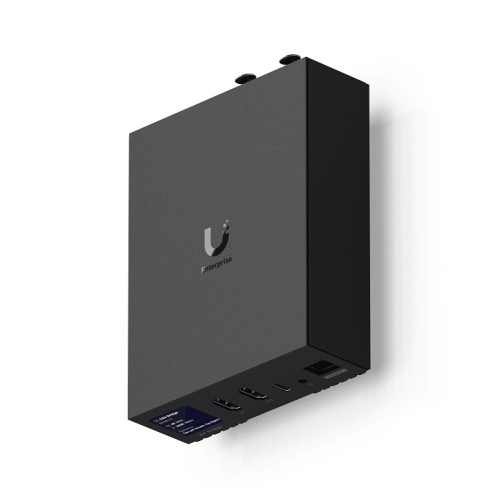

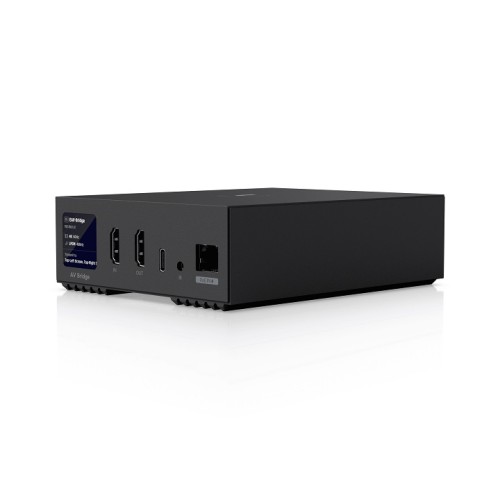

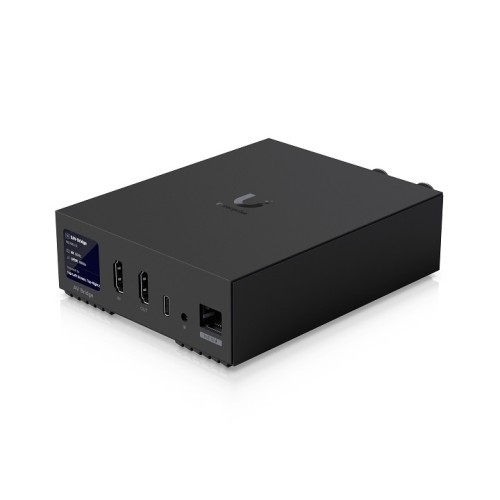

Ubiquiti UniFi Enterprise Audio/Video Bridge - EAV-Bridge
Ubiquiti UniFi Enterprise Audio/Video Bridge - EAV-Bridge
Product Code:
Availability:
Availability:
Ubiquiti EAV-Bridge
Out Of Stock
Out Of Stock
PoE+ powered AV-over-IP transceiver that bridges 4K60 HDMI and professional XLR audio as either a source or destination.
| Dimensions | 109 x 134.4 x 40.4 mm (4.3 x 5.3 x 1.6") |
| Weight | 560 g (1.2 lb) |
| Enclosure Material | Aluminum |

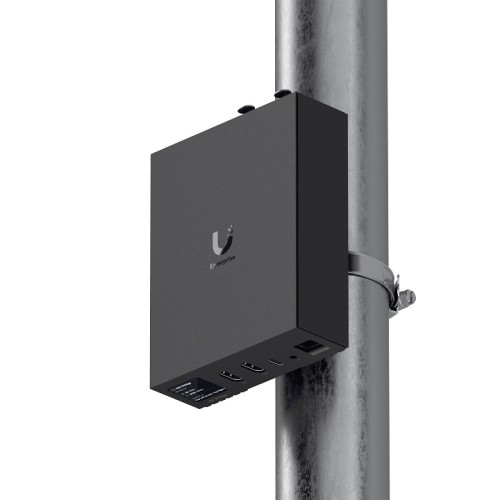

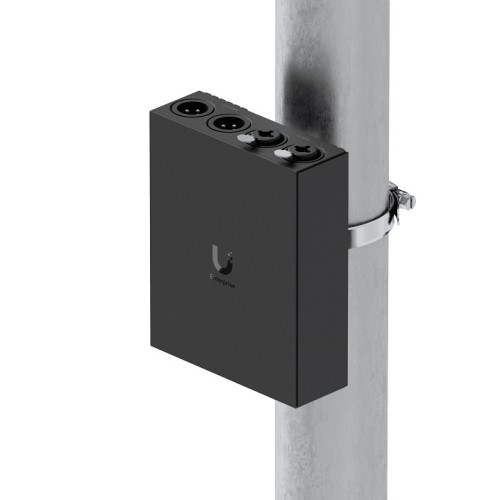

| Mounting | DIN rail, Wall, Pole (Included) |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Audio | |
| Output | Mono / Stereo sound |
| Surround Format | PCM |

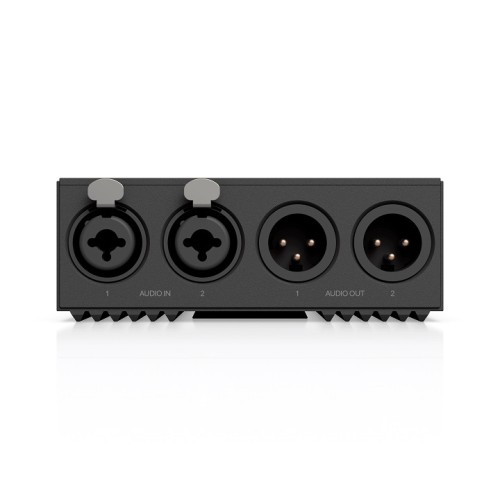

| Audio Input | (1) HDMI in (2) XLR female analog with 6.35 mm analog combo input, phantom power: 48V DC supported |
| Audio Output | (1) HDMI out (2) XLR male analog output |
| Frequency | 20 Hz – 20k Hz ±0.5dB |
| Video | |
| Video Input | (1) HDMI 2.0, 4K at 60 Hz (60 FPS) |
| Video Output | (1) HDMI 2.0, 4K at 60 Hz (60 FPS) |
| Video Content Support | 480p / 720p / 1080p / 4K |
| Signal Distribution | 1-to-1, 1-to-N streaming 1 to 8x8 TV wall configuration |
| Hardware | |
| Networking Interface | (1) GbE RJ45 PoE+ In Etherlighting port |
| Versatile Port | (1) USB Type-C 5V, 1A |
| IR Connection | (1) 3.5 mm Input or Output |
| Power Method | PoE+ |
| Max. Power Consumption | 14W |
| Etherlighting™ | Ethernet ✓ |
| LCM Display | (1) 1.3” touchscreen |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -5 to 40 C (23 to 104 F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
