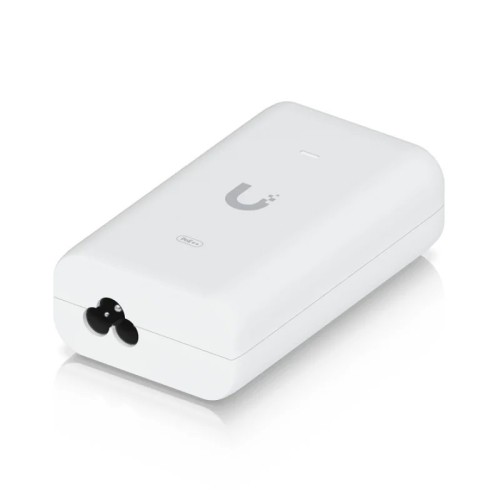

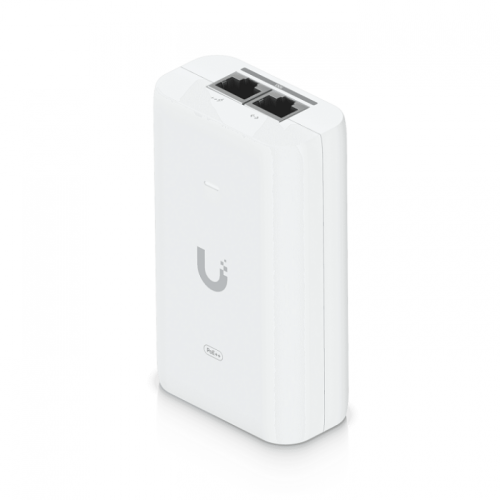

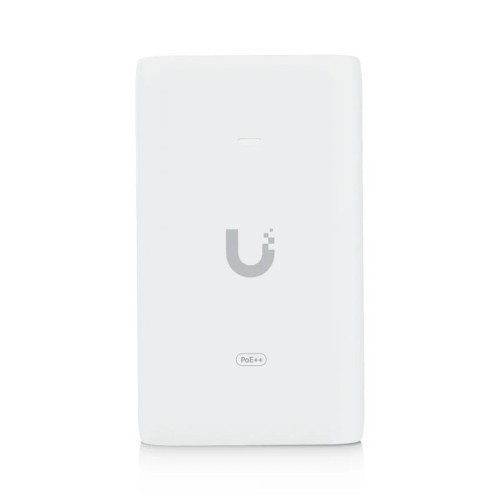

Ubiquiti PoE Adapter - U-PoE
Ubiquiti PoE Adapter - U-PoE
Product Code:
Availability:
Availability:
Ubiquiti U-PoE
In Stock
In Stock
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
#1: Delivers up to 15W of PoE
#2: Surge, peak pulse, and overcurrent protection
#3: Contains RJ45 data input, AC cable with earth ground, and PoE output
#4: LED indicator for status monitoring
#5: Compatibility
UK-Ultra
U6-PLUS
U6-IW
U6-Mesh
U6-Pro
U6-Lite
UAP-AC-IW
UTP-Touch
UVC-G5-Dome-Ultra
UVC-G5-Turret-Ultra
UVC-G5-Pro
UVC-G5-Flex
UVC-G5-Bullet
UVC-G5-Dome
UVC-AI-Pro
UVC-AI-DSLR
UVC-AI-Bullet
UVC-AI-360
UVC-AI-Theta-Pro
UVC-AI-Theta
UVC-AI-Theta-Hub
UVC-G4 Doorbell Pro PoE Kit
UVC-G4-DOME
UVC-G4-Bullet
UVC-G4-Pro
UVC-G3-FLEX
| Power Injector Specifications | |
|---|---|
| Dimensions | 86 x 46 x 33 mm (3.4 x 1.8 x 1.3") |
| Output Voltage | 48V DC, 0.32A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100–240V AC, 50/60Hz |
| Input Current | 500 mA max. |
| Inrush Current | <100A peak at 25C |
| Efficiency | 84.25+% |
| Output Ripple | 200 mV p-p |
| Switching Frequency | 65 kHz |
| Line Regulation | < 3% |
| Load Regulation | < 5% |
| 2-Pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-Pair Powering | No |
| AC Connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Ambient Operating Temperature | 0 to 40C (32 to 104F) |
| Storage Temperature | -30 to 70C (-22 to 158F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL |
