Ubiquiti PoE+ Adapter - U-PoE++-EU
Ubiquiti PoE+ Adapter - U-PoE++-EU
Product Code:
Availability:
Availability:
Ubiquiti U-PoE++-EU
Out Of Stock
Out Of Stock

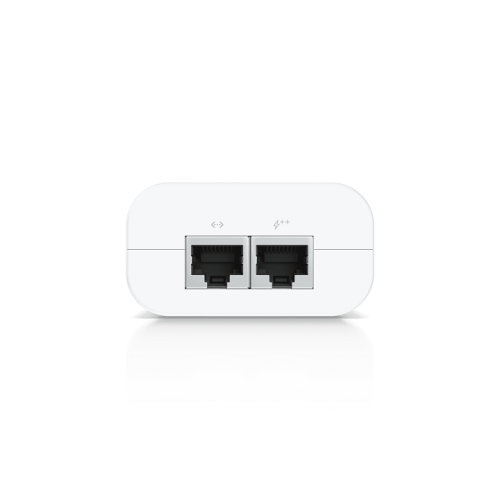

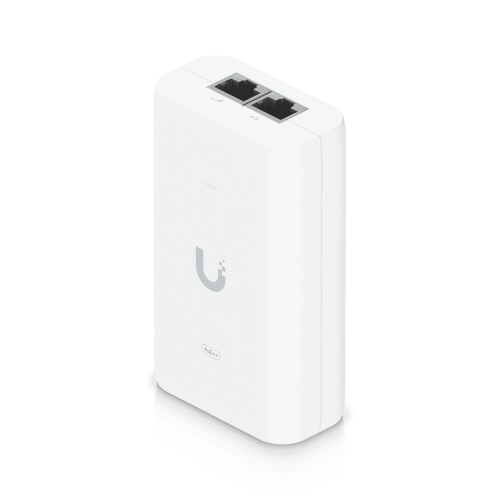

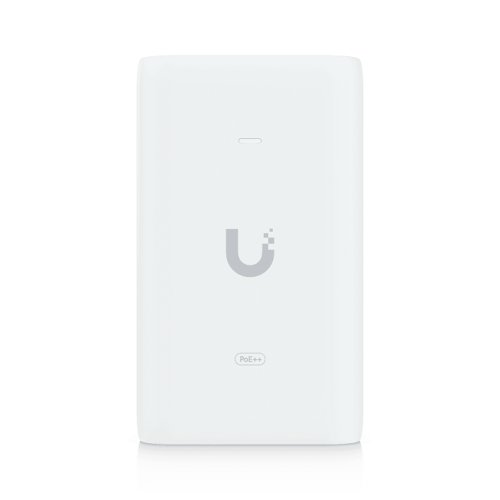

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Compatibility
UVC-G4-PTZ
UA-G2-SK-Pro
UA-Hub
UA-G2-SK
UC-Display
| PoE+ Injector Specifications | |
|---|---|
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Output Voltage | 48V DC at 1.25A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| LAN Activity Indicator | — |
| Gigabit LAN Port | ✓ |
| Remote Reset Capability | — |
| Reset Button | — |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V Power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 1.3A 120V AC |
| Inrush Current | <100A peak 120V AC, <200A peak 230V AC |
| Efficiency | 85+% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | < 1% |
| Load Regulation | < 3% |
| Max. PoE+ Wattage per Port by PSE | 60W |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Power Method | Universal AC input, 100–240V AC, 50/60 Hz |
| Power Supply | AC/DC |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF Data |
| Supported Voltage Range | 100–240V AC |
| Surge Protection | Difference and Common Mode |
| Ambient Storage Temperature | -30 to 70C (-22 to 158F) |
| Ambient Operating Temperature | 0 to 40C (32 to 104F) |
| Ambient Operating Humidity | 10 to 95% Noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
