Ubiquiti Door Lock Relay Cable - UACC-Cable-DoorLockRelay-1P

0 reviews

Product Code:
Availability:

Ubiquiti UACC-Cable-DoorLockRelay-1P
Out Of Stock

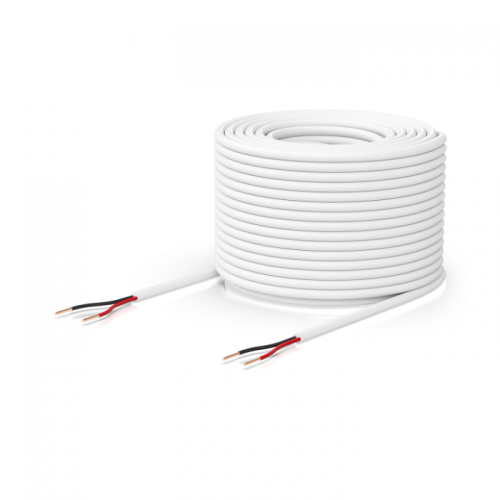

#1: A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

#2: 1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub

#3: 2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

#4: 1-Pair Relay Cable:

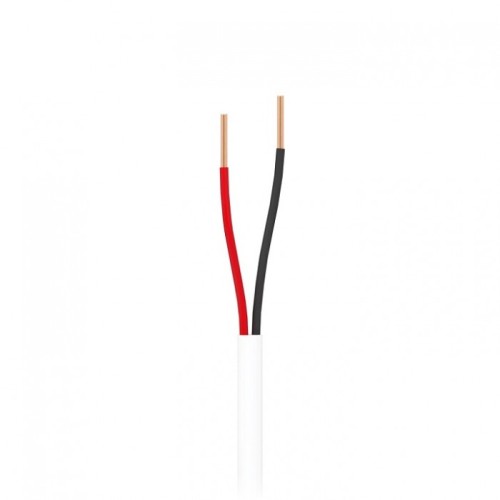

— (2) 18 AWG conductors for an electric/magnetic lock

#5: 2-Pair Relay Cable:

— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor

#6: Cable length 152.4 m

#7: Plenum-rated

#8: Compatibility

UA-Lock-Magnetic
UA-G2-SK-Pro
UA-Lock-Electric
UA-G2-SK
EAH-8
UA-G3-SK-Pro
UA-Hub-Door
UA-G3-SK
UA-Hub-Gate
UA-Hub-Door-Mini

Length 152.4 m (500 ft)

Material Con ductor: Solid bare copper

Jacket: Thermoplastic elastomer (TPE)

Insulation: Semi-rigid polyvinyl chloride (SR-PVC)

Insulation Color UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG)

UACC-Cable-DoorLockRelay-1P: black/red (18AWG)

Weight UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb)

UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)

Flame Rating VW-1

Current Rating 18AWG: 2A for 500 ft length

22AWG: 1A for 500 ft length

Conductor Wire Gauge UACC-Cable-DoorLockRelay-2P: 18/22 AWG

UACC-Cable-DoorLockRelay-1P: 18 AWG

Cable Jacket Outer Diameter

UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18")

UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")

Bend Radius

UACC-Cable-DoorLockRelay-2P: 56 mm (2.2")

UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")

Jacket Color

White

Pulling Tension UACC-Cable-DoorLockRelay-2P: 24.2 kgf

UACC-Cable-DoorLockRelay-1P: 16.4 kgf

Conductor DCR UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)

UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)

Supported Voltage Range 36V DC

Number of conductors UACC-Cable-DoorLockRelay-2P: 4

UACC-Cable-DoorLockRelay-1P: 2

Ambient Storage Temperature -45 to 65 C (-40 to 149 F)

Ambient Operating Temperature -45 to 65 C (-40 to 149 F)
