Ubiquiti Ethernet Surge Protection - UACC-ETH-SP-Panel-24
Ubiquiti Ethernet Surge Protection - UACC-ETH-SP-Panel-24
Product Code:
Availability:
Availability:

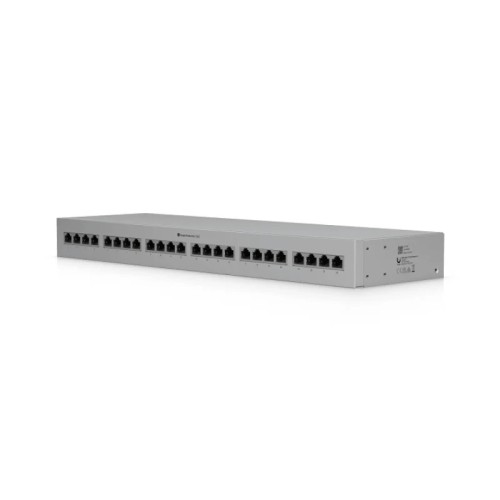

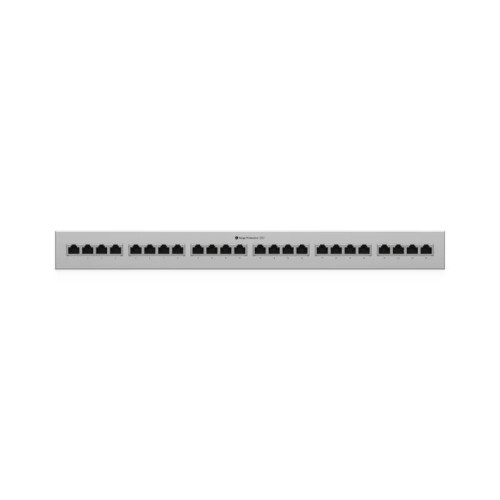

Ubiquiti UACC-ETH-SP-Panel-24
In Stock
In Stock
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
| Ethernet Surge Protector / Patch Panel Specifications | |
|---|---|
| Dimensions | 442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7") |
| Enclosure Material | SGCC steel |
| Networking Interface | (48) RJ45 female connectors |
| DC Spark-Over Voltage | 90V 100V/s |
| Max. Impulse Spark-Over Voltage | 600V 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm 50V |
| Max. Capacitance | 1.0 pF 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | Yes |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40 to +80 C (-40 to 176 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
