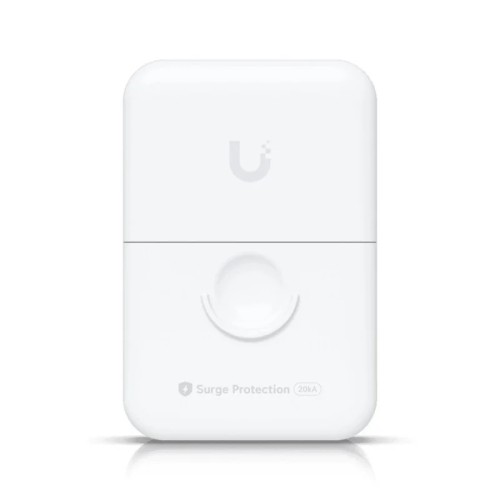

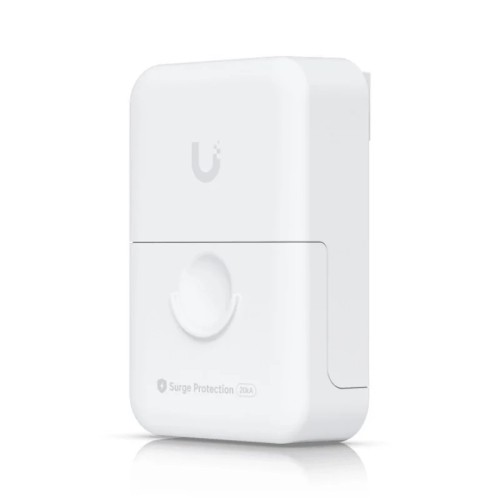

Ubiquiti Ethernet Surge Protection Outdoor - UACC-ETH-SP-Pro
Ubiquiti Ethernet Surge Protection Outdoor - UACC-ETH-SP-Pro
Product Code:
Availability:
Availability:
Ubiquiti UACC-ETH-SP-Pro
In Stock
In Stock
ESD protection for outdoor high-speed networks.
- Protects outdoor Ethernet devices, up to 20kA discharge current.

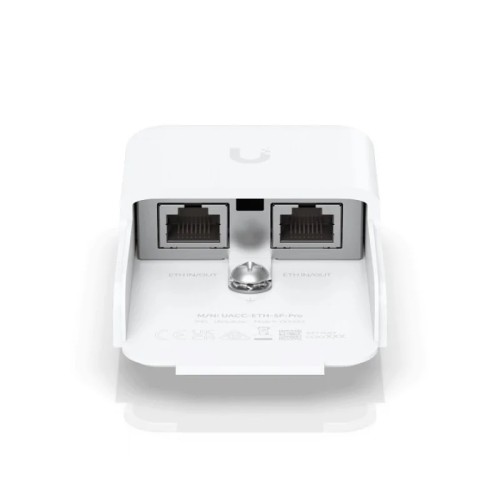

- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatible with 10 GbE networks
| Mechanical | |
|---|---|
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V 100V/s |
| Max. Impulse Spark-Over Voltage | 600V 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm 50V |
| Max. Capacitance | 1.0 pF 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | ✓ |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -30 to 65 C (-22 to 149 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
