Ubiquiti SuperLink High-Gain Antenna - UACC-USL-ANT-HG
Ubiquiti SuperLink High-Gain Antenna - UACC-USL-ANT-HG
Product Code:
Availability:
Availability:
Ubiquiti UACC-USL-ANT-HG
Out Of Stock
Out Of Stock

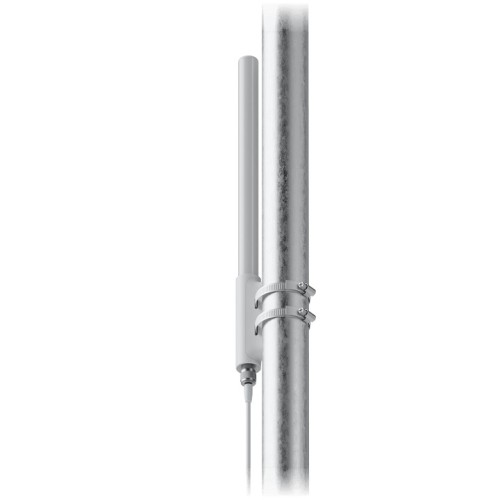

High-gain, omnidirectional antenna with an IP67-rated outdoor enclosure, built to extend SuperLink range in all weather conditions.
Compatibility: USL-Gateway, USL-G2-Gateway-HA
Compatibility: USL-Gateway, USL-G2-Gateway-HA
| Dimensions | Device: 468.9 x 31.8 x 44.1 mm (18.5 x 1.3 x 1.7") With cable: 1458.4 x 31.8 x 44.1 mm (57.4 x 1.3 x 1.7") Cable: 5.2 x 1000 mm (0.2 x 39.4") |
| Weatherproofing | IP67 |
| Mounting | Pole mount |
| Pole Mount Diameter | 1–2.17" (25–55 mm) |
| Wind Loading | 25.4 N at 200 km/h (5.7 lbf at 125 mph) |
| UniFi Application Suite | Protect |
| Performance | |
| Operating Frequency | US: 860–930 MHz EU: 860–930 MHz Bluetooth: 2400–2480 MHz |
| Antenna Gain | Bluetooth: 4 dBi SuperLink: 7 dBi |
| Max. Range | Bluetooth: Up to 100 m (328 ft) SuperLink: 5 km (3.1 mi) |
| Hardware | |
| Weight | Device: 275 g (9.7 oz) Cable: 65 g (2.3 oz) |
| Enclosure Material | Polycarbonate, glass fiber |
| Mount Material | Stainless steel |
| Antenna Connector | (1) RP-N Female |
| Antenna Cable | (1) RP-SMA Male (1) RP-N Male |
| Ambient Operating Temperature | -40 to 60 C (-40 to 140 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE |
