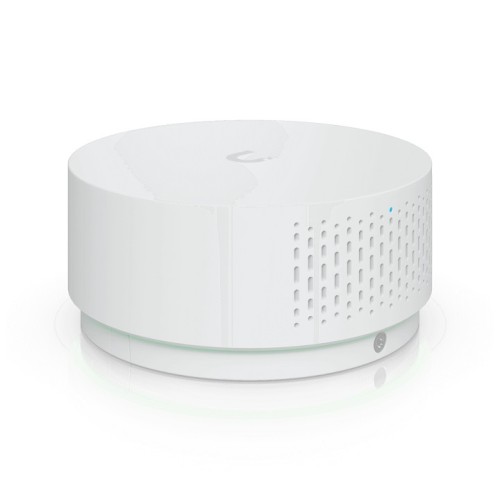

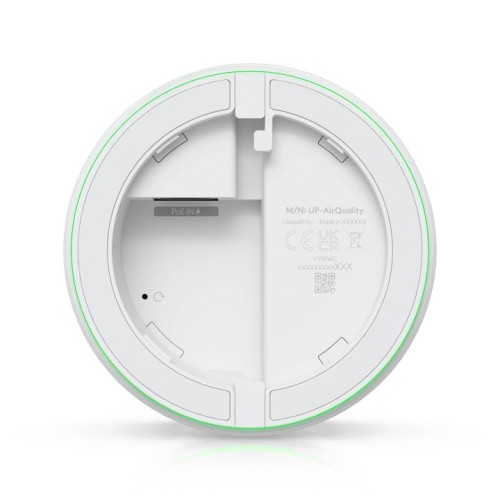

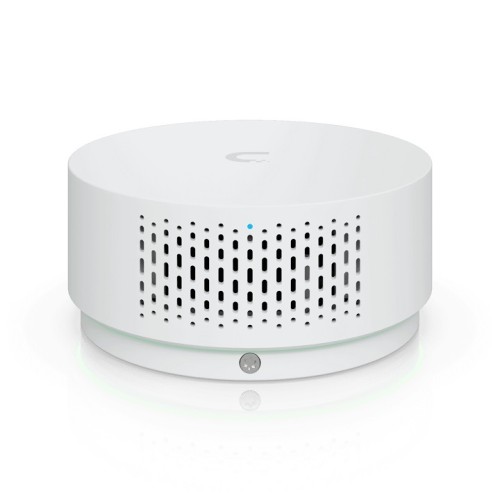

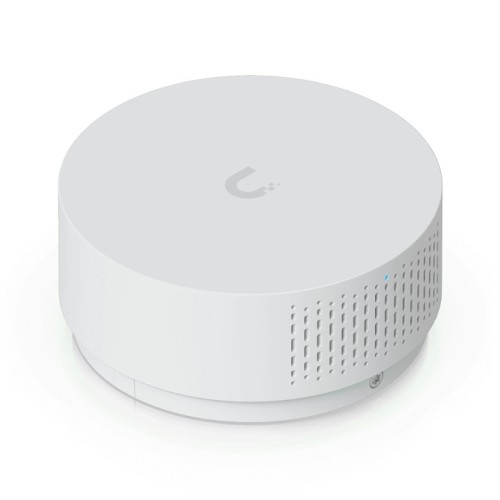

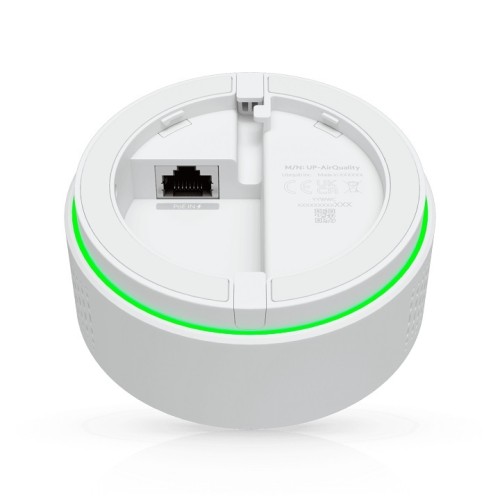

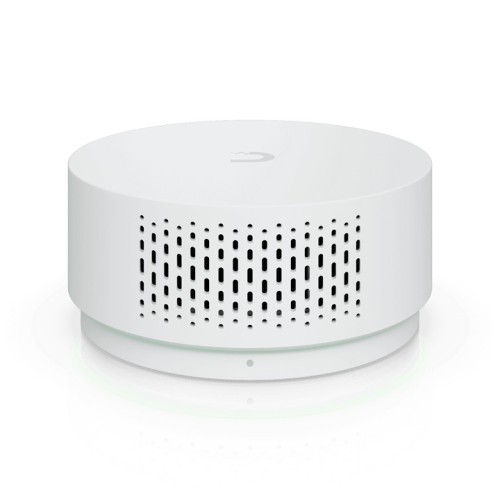

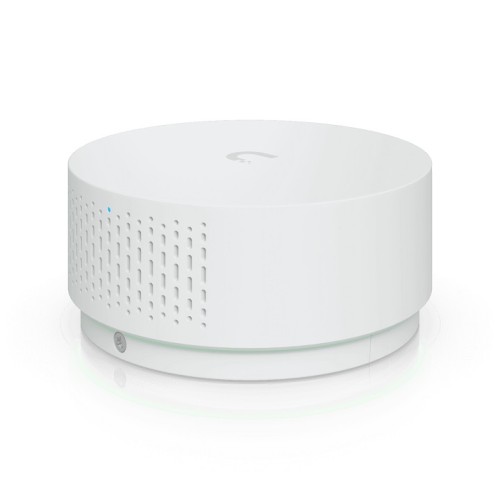

Ubiquiti Vape Detection & Air Quality Sensor - UP-AirQuality

Product Code:
Availability:

Ubiquiti UP-AirQuality
Out Of Stock

PoE-powered sensor delivering real-time vape detection, air quality monitoring, and instant alerts for schools, workplaces, hospitality, and commercial environments.

Dimensions	93 x 40.5 mm (3.7 x 1.6")
Mounting	Wall, ceiling and table
UniFi Application Suite	Protect
Performance
Networking Interface	(1) 10/100 MbE RJ45 port
Connectivity	Ethernet
Sensor Features
Temperature Sensor	✓
Humidity Sensor	✓
Air Quality	CO2, PM1, PM2.5, PM4, PM10, VOC, AQI, Vape
Sampling Rate	1 Hz
Sensitivity Range
Temperature Sensor	0–40 C (32–104 F)
Humidity Sensor	0–90% RH
Air Quality	0–500
CO2 Sensor	0–40,000 ppm
PM1/PM2.5/PM4/PM10	0–1000 g/m
VOC Index	1–500
Vape Index	0–100
Accuracy
PM1/PM2.5	0–100: +(5 µg/m + 5% m.v.) 100–1000: +10% m.v.
PM4/PM10	0–100: +25 g/m 100–1000: +25% m.v.
VOC	+5%
CO2	400–2000: +(50 ppm + 3% of reading) 2000–5000: +(50 ppm + 5% of reading)
Temperature	+1 C (1.8 F)
Relative Humidity	+8% RH
Hardware
Max. Power Consumption	2.2W
Supported Voltage Range	37–57V
Power Method	PoE
Weight	190 g (6.7 oz)
Enclosure Material	Polycarbonate
Mount Material	Aluminum alloy, stainless steel
LEDs	(1) Status: White/Blue (1) Air quality indicator: Red/Green/Yellow/Violet
Operating Environment	Indoor use only
Ambient Operating Temperature	Recommended 10 to 35 C (50 to 95 F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
NDAA Compliant	✓
Software
Application Requirements
Web Application	UniFi Protect: Version 7.1 or later.
Mobile App	UniFi Protect iOS: Version 3.6.0 or later. Android: Version 3.5.0 or later.
