Ubiquiti 32 Input Zone Alarm Control Hub - UP-AlarmHub-Kit
Ubiquiti 32 Input Zone Alarm Control Hub - UP-AlarmHub-Kit
Product Code:
Availability:
Availability:

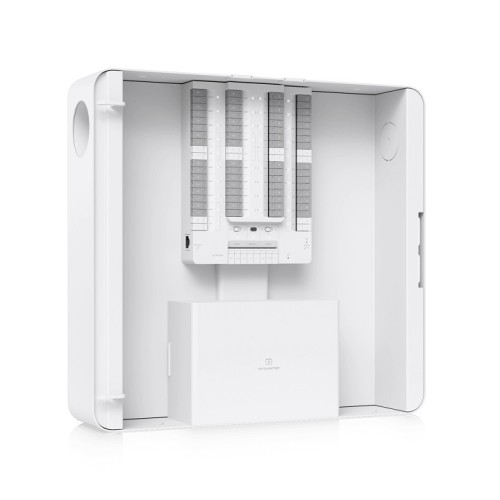

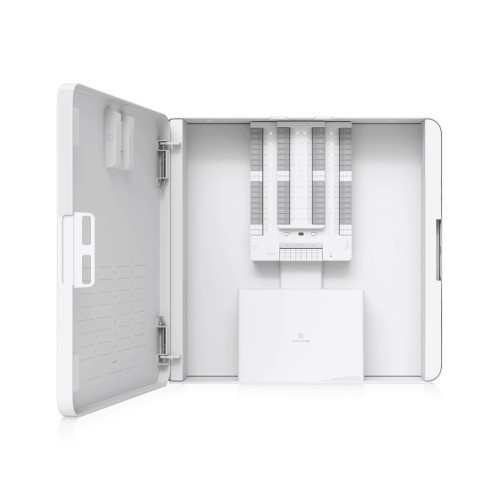

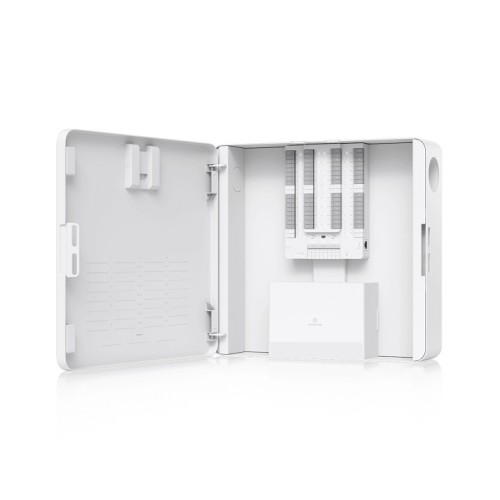

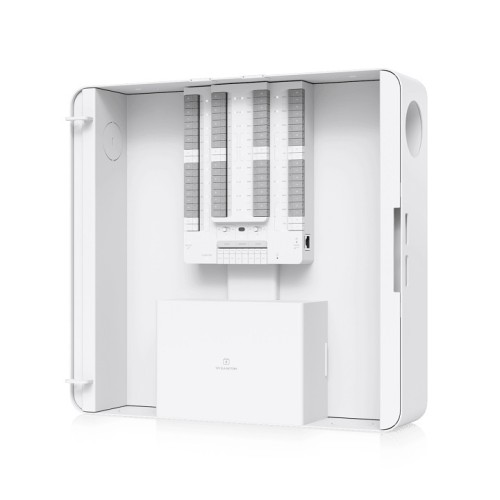

Ubiquiti UP-AlarmHub-Kit
In Stock
In Stock
32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.
| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
| Input Terminals | (32) Alarm sensor (1) Emergency |
| Power Method | PoE++/PoE+++ 12V SLA battery |
| Power Output Availability | PoE+++ input: 68W PoE++ input: 42W |
| NDAA Compliant | ✓ |
| Mechanical | |
| Weight | Device: 8.3 kg (18.3 lb) Mount: 624 g (1.4 lb) |
| Enclosure Material | SGCC steel housing with polycarbonate cover |
| Mount Material | SGCC steel |
| Mounting | Wall |
| Hardware | |
| Digital Input | (32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency |
| Output Relay | (2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A |
| Aux Power Output | For sensor: (3) 12V DC, 1A right side total (3) 12V DC, 1A left side total |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | -10 to 40 C (14 to 104 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| PoE Interface | (1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W |
| Max. Power Consumption | 90W |
| Battery Charge | SLA backup battery, 12V, 0.3A |
| LEDs | W/B |
| Buttons | (1) Factory reset (2) Dry/Wet switch |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements | UniFi Protect Version 7.0.88 and later |
| Mobile App | UniFi Protect iOS version 3.3.0 and later UniFi Protect Android version 3.2.0 and later |
