Ubiquiti UVC-G4 Doorbell Pro PoE Kit-White G4 Doorbell Pro PoE Kit - White
Ubiquiti UVC-G4 Doorbell Pro PoE Kit-White G4 Doorbell Pro PoE Kit - White
Product Code:
Availability:
Availability:

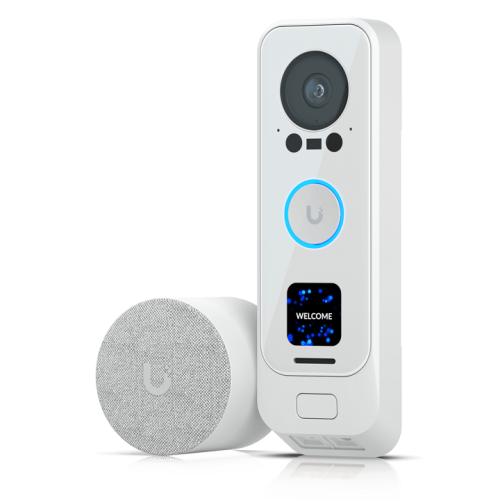

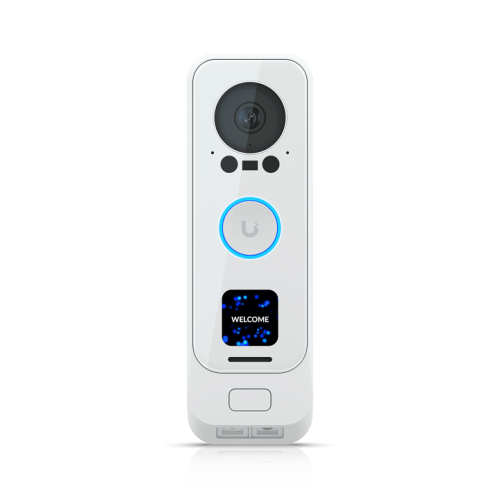

Ubiquiti UVC-G4 Doorbell Pro PoE Kit-White
Out Of Stock
Out Of Stock
Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
| UniFi Doorbell & Chime | |
|---|---|
| Mechanical | |
| Doorbell Dimensions | Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") |
| Chime Dimensions | Device: 62 x 54 mm (2.5 x 2.1") In-wall mount: 89 x 63.1 mm (3.5 x 2.5") On-wall mount: 62 x 20.2 mm (2.5 x 0.8") |
| Mounting | |
| Doorbell | Wall, wedge (Included) Gang box, junction box (Optional) |
| Chime | Flush mount, On-wall mount (Included) |
| Video & Optics | |
| Resolution | FHD |
| Main Camera Field of View | LDC On: H 138, V 114, D 155 LDC Off: H 160, V 117, D 160 |
| Package Camera Field of View | H 97.5, V 79.4, D 118.2 |
| Sensor | Main Camera: 5MP CMOS, Package Camera: 8MP CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter (Doorbell) |
| Max. Frame Rate | 30 FPS |
| Detailed Resolution | Main & Package Camera: 2MP 1600 x 1200 (4:3) |
| Audio | |
| Doorbell | Two-way audio |
| Chime | Speaker, Buzzer |
| Networking | |

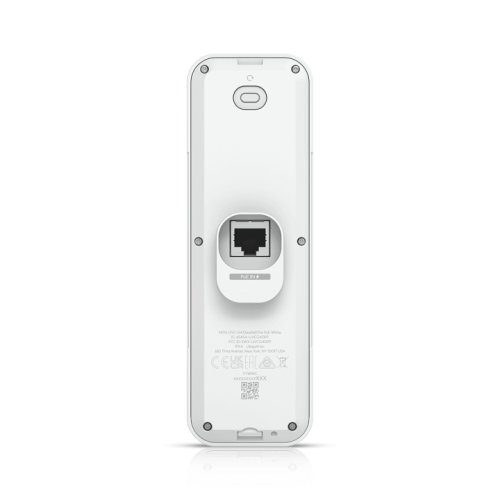

| Doorbell | GbE RJ45 port |
| Chime | 10/100 MbE port |
| Hardware & Power | |
| Max. Power Consumption | Doorbell: 7W, Chime: 3W |
| Power Method | PoE |
| Supported Voltage Range | Doorbell: 37–57V DC, Chime: 44–57V DC |
| Processor | Doorbell: Quad-core Arm Cortex-A53 |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Doorbell: Flat wall mount: aluminum alloy, 20° wedge mount: polycarbonate Chime: Polycarbonate, zinc alloy |
| Buttons | Doorbell: (1) Ring, (1) Factory-reset Chime: (1) Factory-reset |
| Environmental | |
| Doorbell | Ambient Operating Temperature: -30 to 40C (-22 to 104F) Ambient Operating Humidity: 0 to 90% noncondensing |
| Chime | Ambient Operating Temperature: 0 to 40C (32 to 104F) Ambient Operating Humidity: 10 to 90% noncondensing |
| Weatherproofing | |
| Doorbell | IPX4 |
| Compliance | |
| NDAA Compliant | Yes (Doorbell & Chime) |
| Certifications | CE, FCC, IC, SRRC |
| Software | |
| Application | UniFi Protect iOS and Android |
| UniFi App Integration | Protect |
| Chime LED | |
| LED Colors | R/G/B/W |
