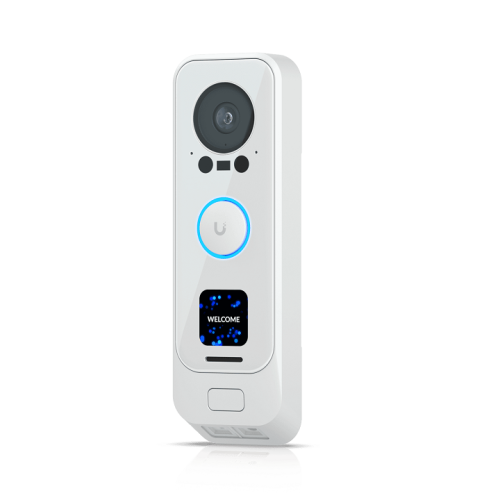

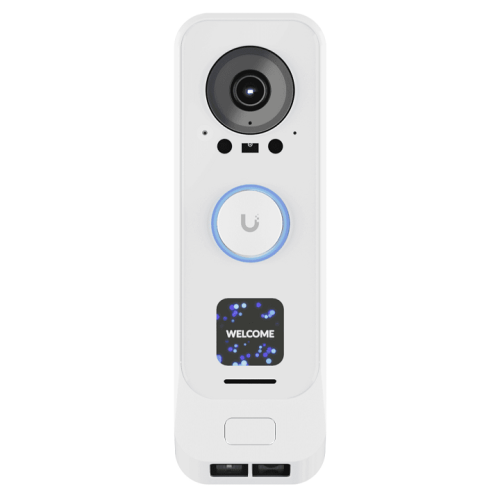

Ubiquiti UVC-G4 Doorbell Pro-White G4 Doorbell Pro - White

Product Code:
Availability:

Ubiquiti UVC-G4 Doorbell Pro-White
Out Of Stock

Premium UniFi doorbell with an enhanced package detection camera and integrated display.

Note. Third-party WiFi configuration available during setup with the UniFi Protect mobile app.

UniFi Doorbell Wi-Fi
Mechanical
Dimensions	160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1")

Mounting	Flat wall, 20 wedge (Included)
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate
Video & Optics
Resolution	FHD
Field of View	Main camera: H 138, V 114, D 155 Package camera: H 97.5, V 79.4, D 118.2
Sensor	Main camera: 5MP CMOS Package camera: 8MP CMOS
Lens	Fixed focal length
Night Mode	Built-in IR LED illumination and IR cut filter
Max. Frame Rate	30 FPS
Detailed Resolution	Main & Package Camera: 2MP 1600 x 1200 (4:3)
IR Night Vision	6 m (20 ft)
Smart Detections	People, Vehicles, Animals
Audio
Two-way audio	Yes
Networking
Interfaces	802.11 a/b/g/n/ac WiFi, Bluetooth 5.0 GbE support (with UACC-Adapter-DBPOE)
Hardware & Power
Max. Power Consumption	10W
Power Method	16–24V AC, 1.25A Max., 50/60 Hz USB-C power cable, 5V DC, 2A
Processor	Quad-core Arm Cortex-A53 based chip
Buttons	(1) Ring button (1) Factory-reset
Compatible Chimes – Mechanical	Broan-NuTone: LA126WH, LA11WH, LA39WH Heath Zenith: SL-2735 Craftmade: CTPW-RG Newhouse Hardware: CHM3D
Compatible Chimes – Digital	Broan-NuTone: LA600WH IQ AMERICA: DW-2850, DW-2840
Environmental
Ambient Operating Temperature	-10 to 40 C (14 to 104 F)
Ambient Operating Humidity	10 to 90% noncondensing
Compliance
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Transformer Specifications (EU version)
Included	✓
Input Rating (5,6)	230V, 50/60 Hz
Input Rating (1,4)	16V AC, 15VA
Ambient Operating Temperature	-5 to 35 C (23 to 95 F)
